Air cooled 176kWh C I Energy Storage Cabinet with External Inverter

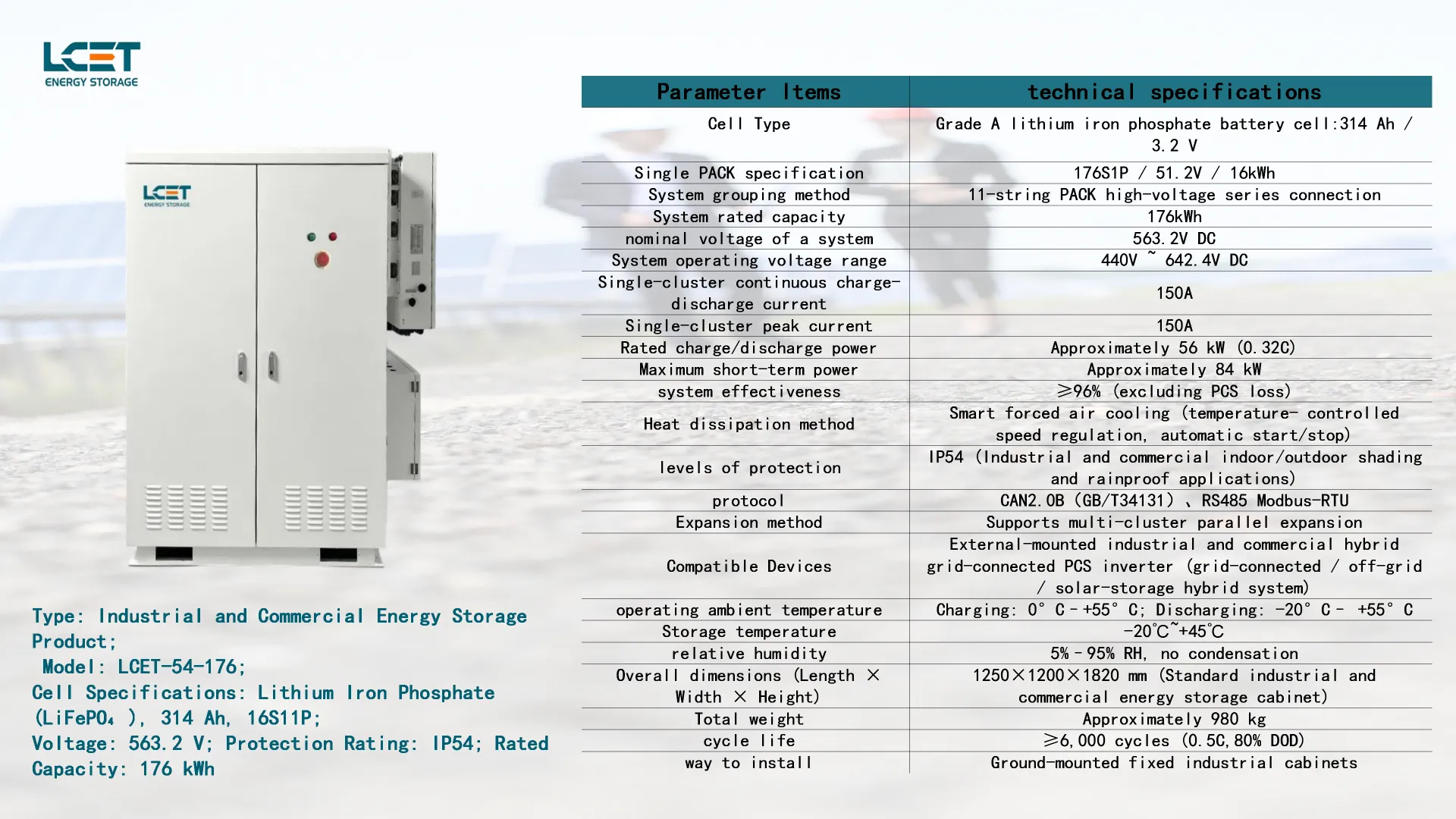

This commercial and industrial energy storage cabinet adopts air cooling thermal management design for stable heat dissipation during long-duration operation. With a total capacity of 176kWh, it is assembled with 11 individual battery packs, each built on a 16-series cell layout, delivering a rated system voltage of 560V.
Different from all-in-one units, the inverter is installed externally, which makes daily maintenance, replacement and system upgrade much easier. The air cooling system effectively controls internal operating temperature, reduces thermal decay of cells and extends battery service life.
Equipped with intelligent BMS, it monitors cell voltage, current and temperature in real time, and provides multi-level protection against overcharge, overdischarge, overcurrent, short circuit and overheating. This storage cabinet is ideal for factory peak shaving, demand charge reduction, industrial backup power, solar PV self-consumption and microgrid projects.
The separated external inverter structure also offers flexible power matching; customers can select suitable inverter power according to their actual load needs. Robust cabinet structure is suitable for indoor or outdoor station installation, supporting remote cloud monitoring and automatic charge-discharge strategy management for long-term stable operation.
